Iranian Engineers Launch Indigenous Engine Control Units for Domestic Vehicles

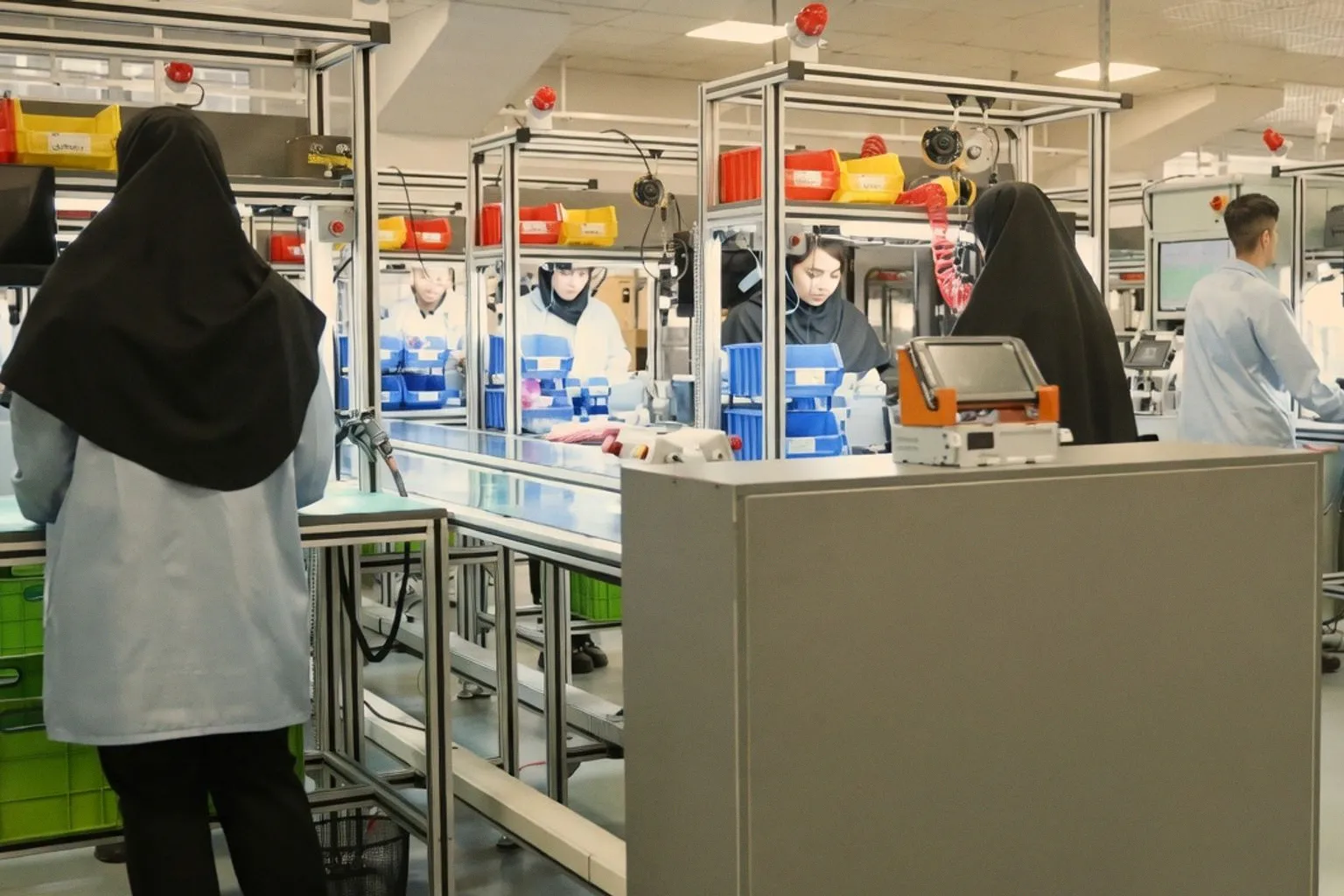

The product, developed inside the Azin Khodro Industrial Group, pairs current-generation microcontrollers with refined embedded software and vehicle-specific calibration, with reported reductions in fuel consumption and emissions output. For technicians servicing Iran-market vehicles, or any import whose signal architecture crosses over with the affected platforms, the development marks a sourcing shift and a revised baseline against which fuel trim, ignition timing, and emissions behavior must now be verified.

Signal Chain And Calibration Scope

An engine control unit operates as the central node in the combustion management loop. Inputs arrive from the crank position sensor, manifold absolute pressure sensor, air mass meter, coolant temperature sensor, lambda probe, and throttle position sensor. Outputs command injector pulse width, ignition coil dwell and spark advance, electronic throttle position, and variable valve timing solenoids where fitted.

The reported development scope at Azin Electro Idea spans hardware design, embedded software, calibration, diagnostics, environmental validation, electromagnetic compatibility, production testing, and vehicle integration. Each discipline demands its own verification regime. A localized ECU, by definition, is not a reference board sealed inside a metal enclosure. It is a calibrated decision engine, and its validity is measured against the response curve of the engine family it commands.

Bench Verification Parameters

When a vehicle presents with combustion-management faults—rough idle, hesitation under load, elevated short-term fuel trim, unresolved readiness monitors—the diagnostic sequence should not default to assumptions inherited from legacy imported units. If the platform carries the indigenous ECU, the following baseline parameters apply during verification:

• Battery voltage measured at the ECU connector, ignition off: 12.4 V minimum. Lower readings introduce false sensor offsets during cold-start fueling.
• Sensor reference voltage at the harness: 5.0 V nominal across analog inputs. Deviations exceeding ±0.15 V indicate ground loop fault or internal regulator degradation within the ECU.
• Crank position signal: clean square wave maintained across the full RPM sweep, no dropouts at the specified baud rate. Any waveform distortion under load warrants inspection of the reluctor air gap and shielding integrity.
• Long-term fuel trim at steady-state cruise, post-warmup: target ±5%. Sustained positive trim above +10% points to vacuum leak or contaminated mass airflow sensor. Sustained negative trim below −10% points to fuel pressure overrun, leaking injector, or lambda sensor drift.
• Base ignition timing at idle, in base timing mode: must match the value stamped on the ECU calibration label. Any deviation indicates either incorrect calibration file or timing chain stretch.

The indigenous unit does not alter the diagnostic method. It narrows the tolerance window and requires that reference values be drawn from the local calibration specification rather than cross-referenced to overseas equivalents.

Azin Electro Idea was established in 2019, with research activity in automotive electronics dating to 2016, according to the same report. The transition from research entity to knowledge-based production consolidates hardware design, firmware, calibration, and series validation under a single domestic firm—a configuration that, in practice, reduces the technician's recourse to the OEM's overseas service portal when chasing wiring diagrams or pinpoint test data for affected models.
